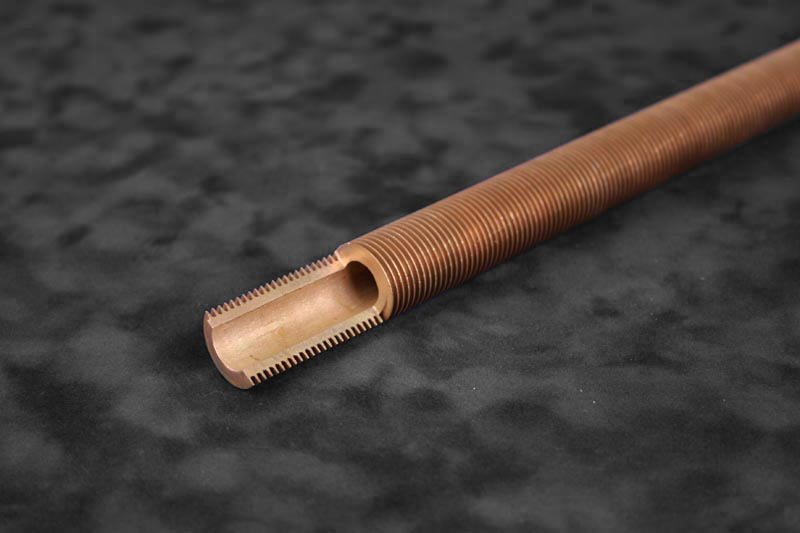

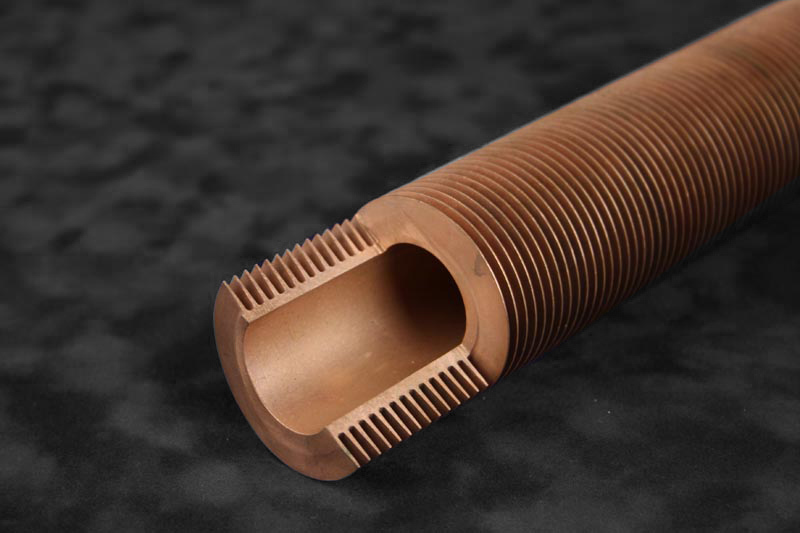

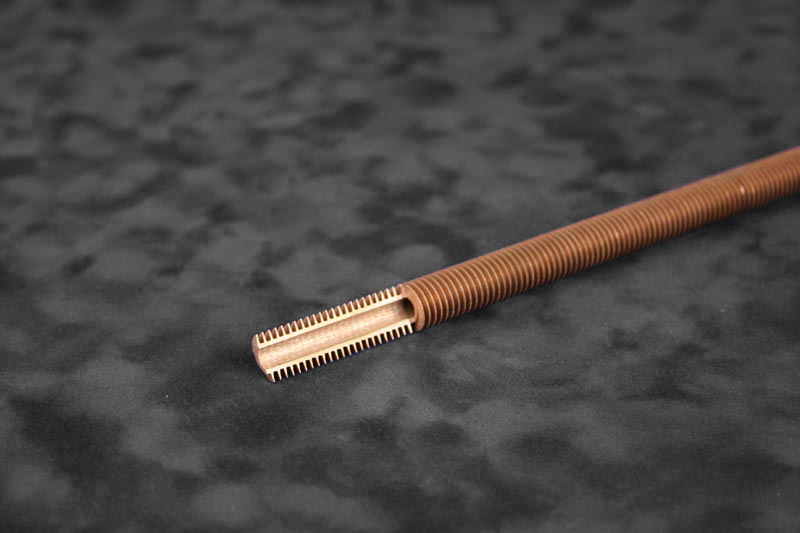

Copper tubes


Quality:

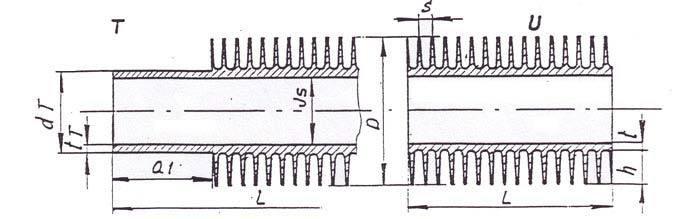

Parameters:
  • diameter around fin D = 15 - 50 mm;
  • max. height of fin h= 8 mm;
  • lead of fin s = 1,5 - 3 m;
  • max. lenght of finned tube L = 12 m.

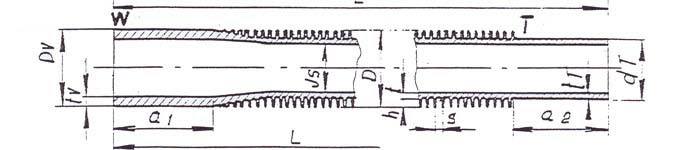

    The inlet of such tube is increased which enables firmer connection of tube with the tube plate during rulling out or cutting out of internal or enternal thread.
